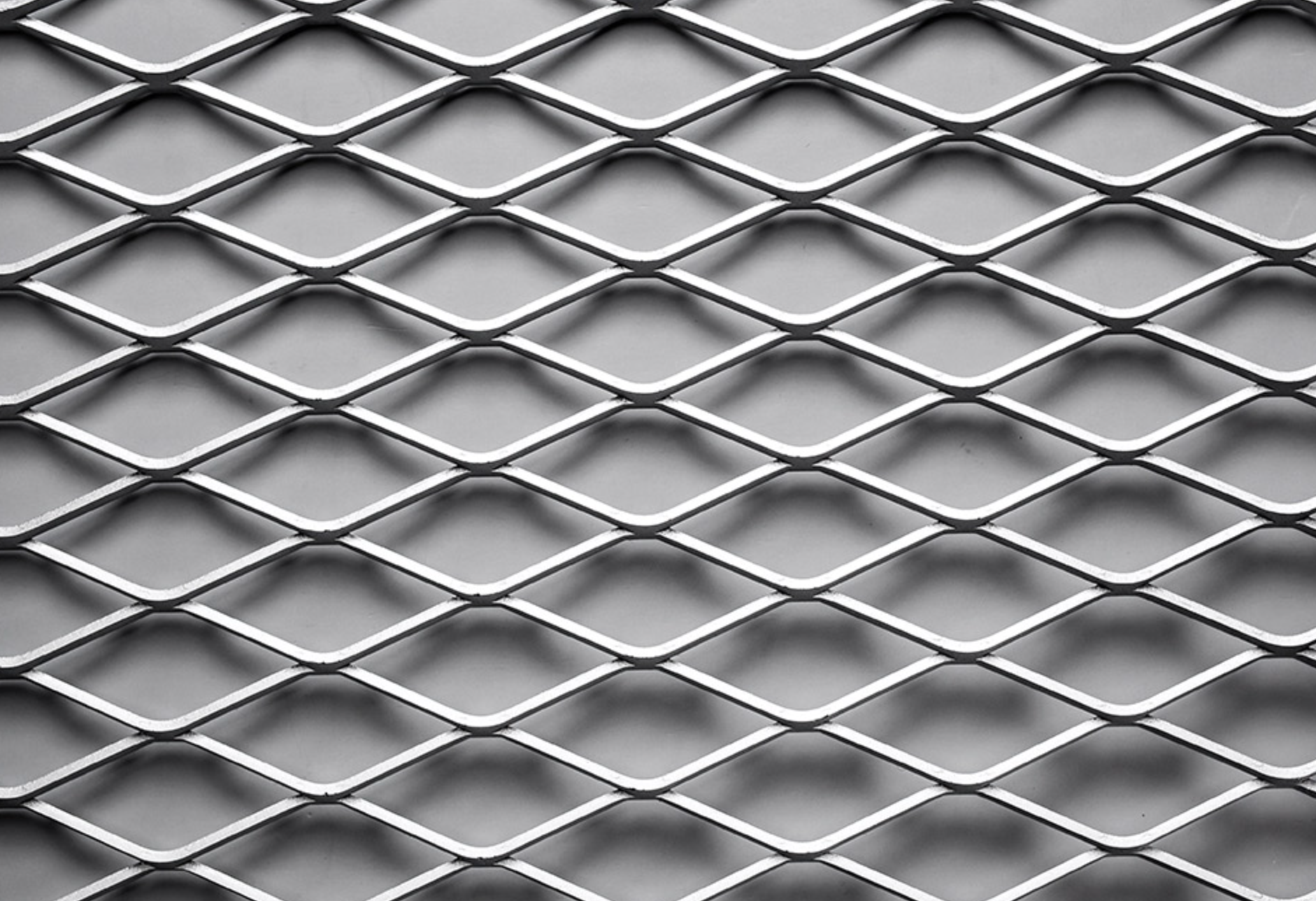

Flattened Expanded Metal Wire Mesh_Shandong HaoXuan Iron&Steel Co.,Ltd

Specifications of Carbon Steel Flattened Expanded Metal

Style	Minimum Thickness (inches)^A	Nominal Weight in lbs./100 Sq. Ft.^B	Design Size (inches)^C		Opening Size (inches)^C			Strand Size (inches)			Overall Thickness (inches)	Open Area
Style	Minimum Thickness (inches)^A	Nominal Weight in lbs./100 Sq. Ft.^B	SWD	LWD	SWO	LWO		Width		Thickness	Overall Thickness (inches)	Open Area
¼"-#20	0.026	74	0.250	1.05	0.092		0.715	0.079	0.029		0.029	37%
¼"-#18	0.034	100	0.250	1.05	0.090		0.715	0.080	0.038		0.038	36%
½"-#20	0.026	37	0.500	1.26	0.342		1.000	0.079	0.029		0.029	68%
½"-#18	0.034	61	0.500	1.26	0.306		1.000	0.097	0.038		0.038	61%
½"-#16	0.043	77	0.500	1.26	0.304		1.000	0.098	0.048		0.048	61%
½"-#13	0.066	126	0.500	1.26	0.286		1.000	0.107	0.072		0.072	57%
¾"-#16	0.043	47	0.923	2.10	0.701		1.750	0.111	0.048		0.048	76%
¾"-#14	0.054	56	0.923	2.10	0.713		1.760	0.105	0.060		0.060	77%
¾"-#13	0.066	67	0.923	2.10	0.711		1.781	0.106	0.072		0.072	67%
¾"-#10	0.066	102	0.923	2.10	0.603		1.755	0.160	0.072		0.072	65%
¾"-#9	0.101	157	0.923	2.10	0.593		1.688	0.165	0.108		0.108	64%
1"-#16	0.043	38	1.000	2.52	0.804		2.250	0.098	0.048		0.048	80%
1½"-#16	0.043	35	1.330	3.15	1.092		2.750	0.119	0.048		0.048	82%
1½"-#14	0.054	43	1.330	3.15	1.098		2.750	0.116	0.060		0.060	83%
1½"-#13	0.066	51	1.330	3.15	1.098		2.750	0.116	0.072		0.072	83%
1½"-#9	0.101	105	1.330	3.15	1.014		2.563	0.158	0.108		0.108	76%
^A The minimum thickness is absolute, not subject to minus variation. ^B A variation in weight per square ft. of ±10 % is permissible, based on the weight of any sheet or bundle. ^C A tolerance of ±10 % is permitted in dimensions, center to center.
