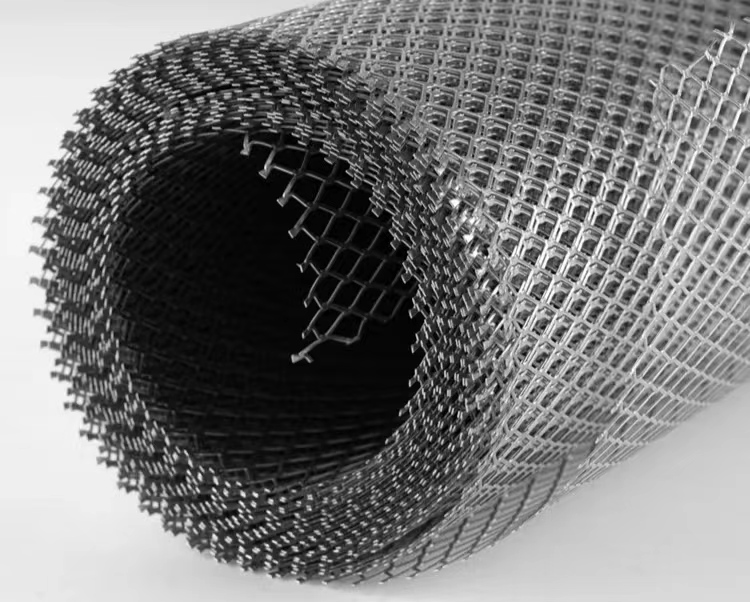

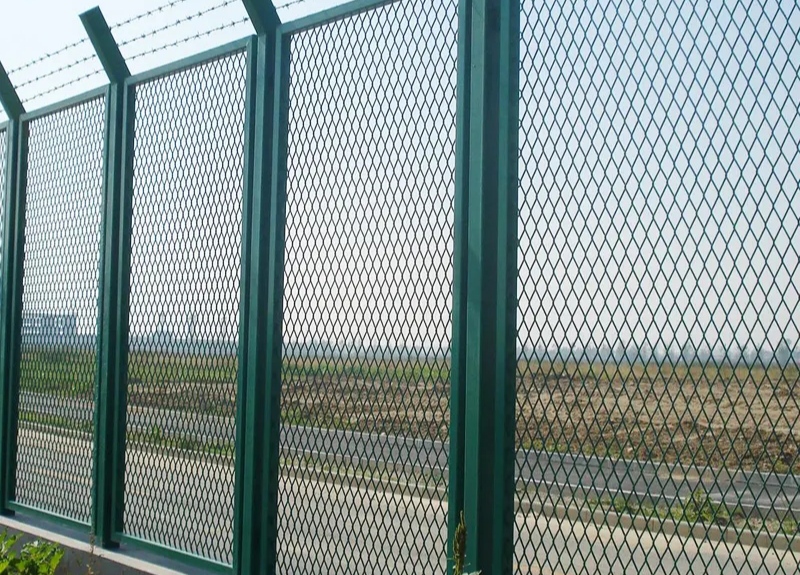

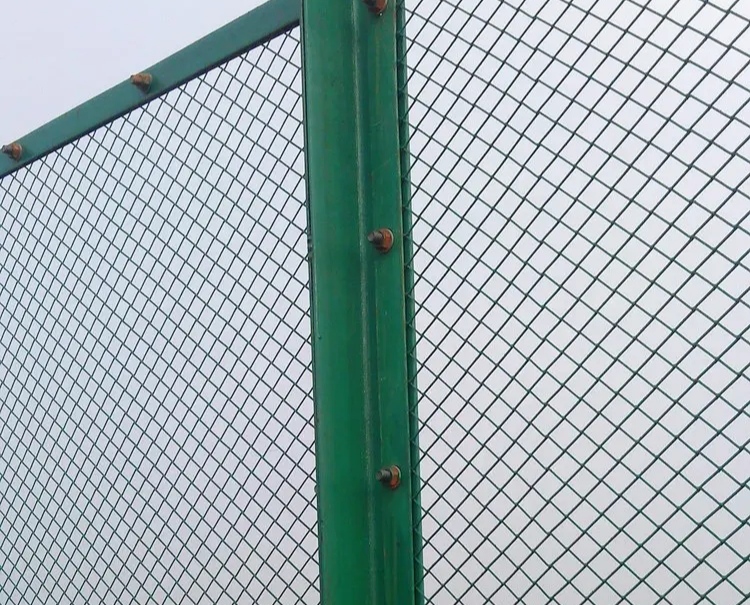

Small Hole Expanded Metal Wire Mesh
Flattened, Hot Rolled,Galvanized,carbon steel, aluminum, or stainless steel
| Small Diamond Designs-Carbon Steel-Standard | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Style | Nominal Weight in lbs./100 Sq. Ft.A | Design Size (inches)B | Opening Size (inches)B | Strand Size (inches) | Overall Thickness (inches) | Open Area | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWD | LWD | SWO | LWO | Width | Thickness | ||||||
| 3/32"-#24 | 56 | 0.140 | 0.240 | 0.084 | 0.135 | 0.040 | 0.024 | 0.083 | 43% | ||
| 1/8"-#24 | 52 | 0.150 | 0.300 | 0.094 | 0.155 | 0.040 | 0.024 | 0.083 | 47% | ||
| 3/16"-#24 | 26 | 0.190 | 0.500 | 0.145 | 0.375 | 0.034 | 0.018 | 0.069 | 64% | ||
| 3/16"-#24 | 49 | 0.200 | 0.500 | 0.136 | 0.325 | 0.050 | 0.024 | 0.101 | 50% | ||
| 3/16"-#24 | 72 | 0.210 | 0.500 | 0.131 | 0.308 | 0.060 | 0.031 | 0.122 | 43% | ||
| 1/4"-#24 | 51 | 0.250 | 0.670 | 0.180 | 0.473 | 0.050 | 0.031 | 0.104 | 60% | ||
| A A variation in weight per square ft. of ±10 % is permissible, based on the weight of any sheet or bundle. B A tolerance of ±10 % is permitted in dimensions, center to center. |
|||||||||||
